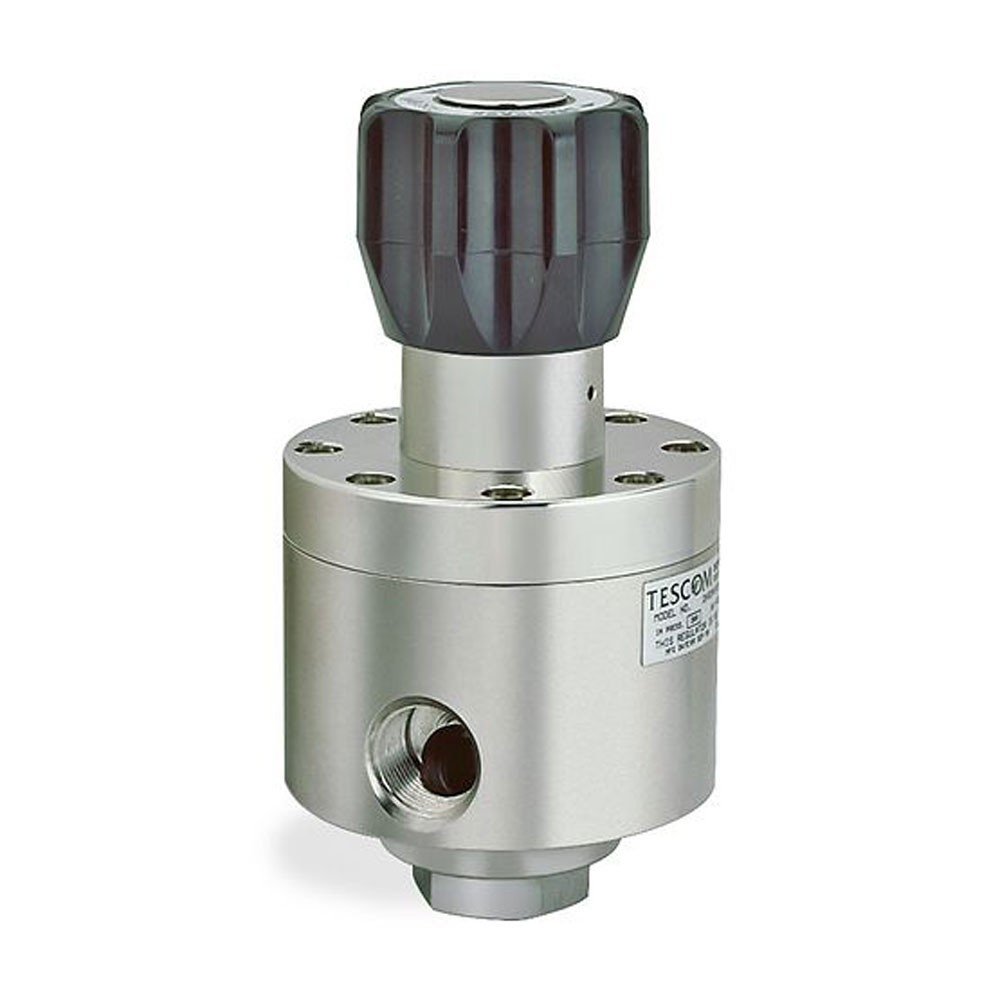

TESCOM DHH13BEC9KITN DH Series Single Stage Regulator 0-150 PSIG for Non-Metallic Kit

Industries:

• Automotive Line
• Pharmaceutical manufacturing plants
• Chemical manufacturing plants
• Emergency vehicles that have a series of full hood mask

Applications:

• Purging
• Blanketing
• High flow inerting
• Heat treating
• Shielding gases

Features:

• Diaphragm sensed – highly sensitive
• Excellent repeatability
• Very high flows at low pressures
• Performs well at very low pressure differentials such as dewar-supplied processes
• Multi-drop breathing air stations

Specifications:

• Load Type: Spring
• Outlet pressure Range: 0-150 psig
• Design proof pressure: 150% of rated inlet
• Leakage: Bubble-tight
• Ambient operating temperature: -20°F to +165°F / -20°C to +74°C
• Flow Capacity: Cv = 5.0
• Optional Items: None
• Porting Configuration: For Non-Metallic Kit

Media Contact Materials:

• Body, Bonnet, Back-cap: Brass
• Diaphragm: Ethylene Propylene
• O-Ring and Valve Seat Material: Buna-N
• Vent Seat: CTFE

Other:

• Cleaning: CGA 4.1 and ASTM G93 (Intermediate Level)
• Weight: Brass: 16lbs / 7.2 kg
