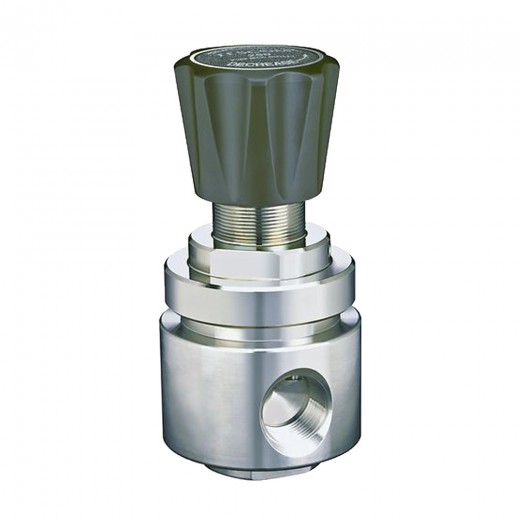

Tescom Gas Pressure Regulator 0-150 PSIG FR2063-2122-019. FR2000 Series regulator is extremely accurate and designed for high flow at low outlet pressure. The diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in low-pressure purge.
TESCOM FR2063-2122-019 Gas Pressure Regulator 0-150 PSIG
In stock
Applications:
- Low pressure purge
Features:
- Accurate and designed to provide high flow at low control pressure
- High-flow, Cv = 1.8
- Metal-to-metal sealed diaphragm
- Dome loaded version is available
- Gauge ports are available
Specifications:
- Maximum Inlet Pressure: 500 psig / 34.5 bar
- Outlet Pressure Ranges: 0-150 psig / 0-10.3 bar
- Design Proof Pressure: 150% maximum rated
- Leakage:
- Internal: Bubble-tight
- External: < 2 x 10-8 atm cc/sec He
- Operating Temperature: -40°F to 165°F / -40°C to 74°C
- Flow Capacity: Cv = 1.8
- Inlet and Outlet Port Type: NPT
- Inlet and Outlet Port Size: 3/4 inch
- Modification: 1/4 inch gauge port at 90°
Media Contact Materials:
- Body: 316 Stainless Steel
- Seat: FEP, PTFE
- Retainer Seat: Nitronic 60
- O-Ring: PTFE
- Diaphragm: 316 Stainless Steel
- Spring: 316 Stainless Steel
- Remaining Parts: 316 Stainless Steel
Other:
- Cleaning: CGA 4.1 and ASTM G93
- Weight without gauges: 6.0 lbs / 2.7 kg
